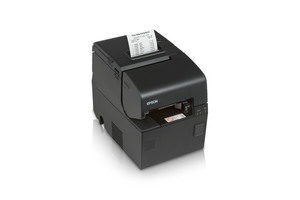

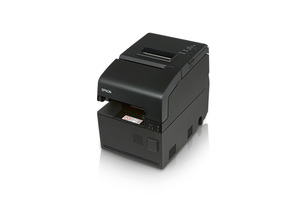

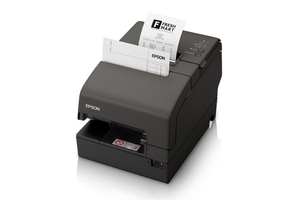

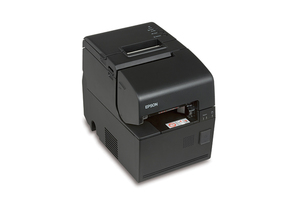

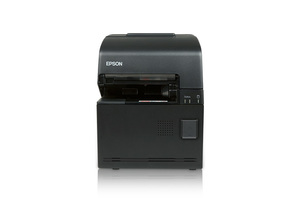

OmniLink TM-H6000IV-DT Intelligent Printer

Print Fonts:

---

Column Capacity:

• Receipt printing: 56 / 42 columns
• Slip printing: 60 / 45 columns
• Endorsement Printing¹: 40 columns

Character Size:

• Receipt printing: 0.99 x 2.4mm (W x H) {1.41 x 3.39mm (W x H)}
• Slip printing: 1.56 x 3.1mm (W x H) {1.24 x 3.1mm (W x H)}
• Endorsement Printing¹: 1.1 x 2.42mm (W x H)

Fonts:

• Receipt printing: 9 x 17 / 12 x 24
• Slip printing: 5 x 9 / 7 x 9
• Endorsement Printing¹: 5 x 7

Barcode: One- and two-dimensional

Media Handling:

---

Thickness:

• Receipt printing: 0.06 to 0.09mm
• Slip printing: 0.09 to 0.47mm
• Endorsement Printing¹: 0.09 to 0.2mm

Media Dimensions:

• Receipt printing: 79.5 ± 0.5 x diameter 83.0mm {3.13 ± 0.02 x diameter 3.27"}
• Slip printing: 70 to 148 x 150 to 210mm {2.76 to 5.82 x 5.91 to 8.27"}

Copy Capacity:

• Slip printing: One original & three copies
• Endorsement Printing¹: One original single-ply & 2 copies

Connectivity:

---

Standard Connectivity:

• Built-in USB
• Connect-It™ including Serial, Powered USB,WiFi, Parallel and Ethernet

Printer Control: Can control printing on up to 20 Ethernet interface or TM series printers equipped with a wireless LAN interface

Hardened PC:

---

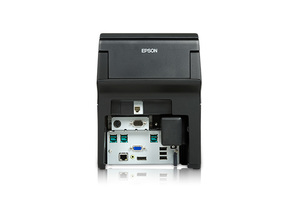

Processor: Intel® Atom™ processor (1.86GHz)Interface:

• USB 2.0 x 3
• 100 Base-TX/10 Base-T Ethernet compliant interface
• VGA x 1 (D-sub 15pin female)
• x 1 (3.5mm stereo mini jack) line-out
• x 1 DisplayPort
• x 1 for cash drawer
• x 1 RS-232
• Embedded Powered USB hub with 12 volts supports 3 peripherals

System Memory: 4.0GB (DDR3-1066)Operating System:

• Windows® Embedded POSReady 7
• Windows 7 Pro
• Linux

Presenter POS:

---

Sensors: Cover open, Top of form, Bottom of form, Slip eject,Roll paper near end, Roll paper end

POS Details:

---

Reliability:

• Receipt printing:
  • MTBF: 360,000 hours
  • MCBF: 96,000,000 lines
• Slip printing:
  • MTBF: 180,000 hours
  • MCBF: 29,000,000 lines
• Endorsement Printing¹:
  • MTBF: 180,000 hours
  • MCBF: 65,000,000 lines

Data Buffer: 45 bytes or 4 KB (up to 384 KB for graphic files)D.K.D.: 2 driversSoftware Included: Intelligent software: WebPOS Configuration, ePOS-Device, Preboot Execution Environment (PXE)Options: Endorsement printer, validation printer, 58mm widthpaper guide PG-5811, DM attachment DPR-6000,connector cover OT-CC6000

Power:

---

Power Source: 24 VDC ± 7%
