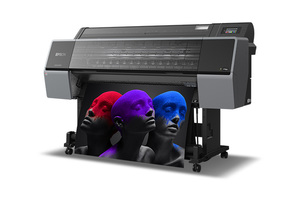

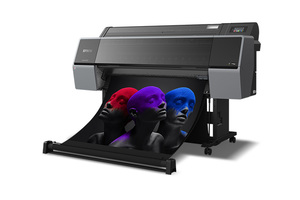

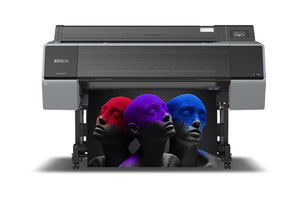

SureColor P9570 44" Wide-Format Inkjet Printer

New

SureColor P9570 44" Wide-Format Inkjet Printer

Max. Paper Width: 44 inches
Ink Configuration: C M Y LC LM GY LGY O GR V PK MK Ink Guide
Model: SCP9570SE

Product Highlights

  • Epson’s most advanced wide-format printer
  • New 12-channel PrecisionCore printhead for ultra-fast speeds
  • Extreme color gamut with all-new UltraChrome PRO12 Ink
  • Dedicated Photo and Matte Black nozzles; no switching
  • Exceptional print permanence3 and color stability

Note: This printer is designed for use with Epson cartridges only, not third-party cartridges or ink. See Important Ink Info

More Info?

The Art of Performance.

We believe technology has the power to push creative boundaries, exceed the limits of imagination and propel artistry to new heights. That’s why, after 20 years of perfecting wide-format printing technology, we are ready to unveil our most advanced printer to date, designed to transform your artistic vision into a truly unforgettable experience.

Introducing the all-new SureColor P9570, the next generation of wide-format printing—only from Epson.

From professional photography to proofing and graphic design, the SureColor P9570 was built from the ground-up to uniquely cater to the full spectrum of creative needs. Featuring all-new UltraChrome® PRO12 Ink, the SureColor P9570 captures every detail with unparalleled color brilliance2 and accuracy. And, with a new 2.6" PrecisionCore® printhead, you get unmatched image quality at speeds up to 2.4 times faster than our previous generation1.

Welcome to the future of professional imaging.


More Info?

  • Our most advanced wide-format printer yet — tackles photography, fine art, proofing and graphic design printing with unmatched image quality and performance

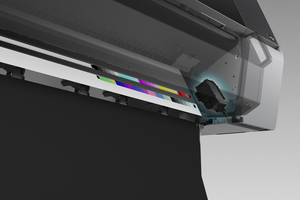

  • Powered by PrecisionCore — new 2.6" printhead performs at speeds up to 2.4 times faster than our previous generations1
  • Extreme color gamut — all-new UltraChrome PRO12 Ink with Violet produces astounding color with up to 99 percent coverage of the PANTONE® FORMULA GUIDE solid-coated standard2
  • Realtime Photo and Matte Black ink switching — dedicated nozzles for both black ink types
  • Industry-leading print permanence — creates prints that last up to 200 years color and 400 years black-and-white3

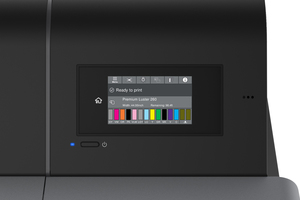

  • New customizable touchscreen — first-in-class to feature a customizable, 4.3" color touchscreen for easy navigation
  • Reliable printer design — redesigned industrial-level print engine for lasting durability and an interior LED light for convenient operation
  • Increased black density with Black Enhance Overcoat — improved Dmax for a wider contrast ratio with enhanced clarity and increased sharpness on glossy papers
  • Optional Epson SpectroProofer® — automates color calibration and proof verification tasks for proofing applications with optional third-party RIP and workflow software
  • Easy workflow integration — compatible with most third-party RIP workflow software

What's in the box:

  • SureColor P9570 Printer and Stand

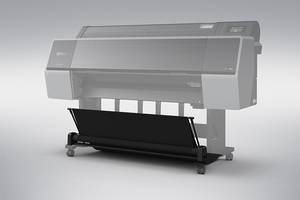

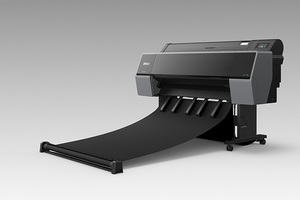

  • Paper Catch Basket

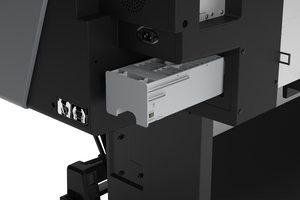

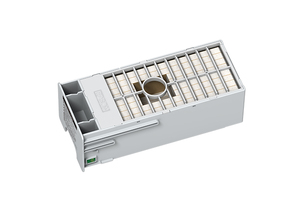

  • Maintenance Tanks (quantity 2 installed)
  • Initial Ink Cartridges (110 mL x 12 cartridges)
  • AC Power Cable
  • User Guide Kit (Documentation and Warranty)

Print:


Printing Technology: PrecisionCore MicroTFP 12-channel, drop-on-demand printheadMaximum Print Resolution: 2400 x 1200 dpiPrint Speed: 23.4" x 33.1" prints1
  • Normal (BEO: off) 2:02
  • Normal (BEO: on) 4:04
40.6" x 57.3" prints1
  • Draft (BEO: off) 3:39
  • Normal (BEO: off) 4:45
(BEO=Black Enhance Overcoat)Minimum Ink Droplet Size: Smallest droplet size: 3.5 picoliters; Variable Droplet Technology can produce up to three different sizes per lineNozzle Configuration: Color and monochrome heads; 9600 nozzles (800 nozzles x 12)

Ink:

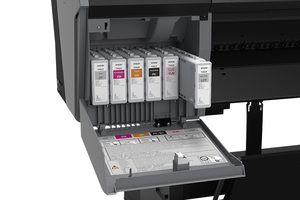

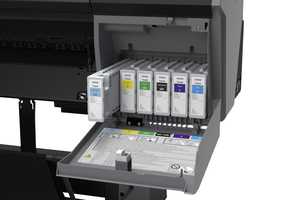

Ink Type: UltraChrome PRO12 pigment ink; 12-inkInk Palette: Cyan, Light Cyan, Vivid Magenta, Vivid Light Magenta, Yellow, Gray, Light Gray, Orange, Green, Photo Black, Matte Black and VioletInk Configuration: UltraChrome PRO12 Ink (700 mL)
  • Photo Black T44H120
  • Cyan T44H220
  • Vivid Magenta T44H320
  • Yellow T44H420
  • Light Cyan T44H520
  • Vivid Light Magenta T44H620
  • Gray T44H720
  • Matte Black T44H820
  • Light Gray T44H920
  • Orange T44HA20
  • Green T44HB20
  • Violet T44HD20
UltraChrome PRO12 Ink (350 mL)
  • Photo Black T44P120
  • Cyan T44P220
  • Vivid Magenta T44P320
  • Yellow T44P420
  • Light Cyan T44P520
  • Vivid Light Magenta T44P620
  • Gray T44P720
  • Matte Black T44P820
  • Light Gray T44P920
  • Orange T44PA20
  • Green T44PB20
  • Violet T44PD20
UltraChrome PRO12 Ink (150 mL)
  • Photo Black T44W120
  • Cyan T44W220
  • Vivid Magenta T44W320
  • Yellow T44W420
  • Light Cyan T44W520
  • Vivid Light Magenta T44W620
  • Gray T44W720
  • Matte Black T44W820
  • Light Gray T44W920
  • Orange T44WA20
  • Green T44WB20
  • Violet T44WD20
Fade Resistance / Print Longevity: Color: up to 200 years; Black-and-white: up to 400 years3

General:


Operating Systems: Apple® OS X® 10.6.8 or later
Windows® 10, 8.1, 7 (32-bit, 64-bit)7Temperature: Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
Operating (recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C)
Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)Humidity: Operating: 20 - 80% (no condensation)
Operating (recommended): 45 - 60% (no condensation)
Storage: 5 - 85% (no condensation)Sound Level: Less than 49.5 dB(A) according to ISO 7779Dimensions: Basket Closed: 75.1" x 26.3" x 48" (1909 mm x 667 mm x 1218 mm)Weight: 339 lb (153.8 kg)Eco Features: ENERGY STAR® qualified
RoHS compliant
Recyclable product8
Epson America, Inc. is a SmartWay® Transport Partner9Safety Approvals: Safety standards: UL62368-1, CAN/CSA C22.2 No.62368-1 EMC FCC part 15 subpart B class B, CAN/CSA-CEI/IEC CISPR22 class B, AS/NZS CISPR 32 class BCountry of Origin: ChinaWarranty: Standard 1-year usually next-business-day on-site repair with toll-free phone support Monday through Friday

Ink Supply System:


In-box Ink Fill Volume: 110 mL each color x 12 colors total4Retail Ink Fill Volume: 150, 350 or 700 mL each color available x 12 colors total4Ink Shelf Life: 2 years from printed production date or 6 months after opened
Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.*

Printable Area and Accuracy:


Maximum Paper Width: 44"Minimum Cut-sheet Size: 8.5" x 11"Line Accuracy: +/- 0.2% of specified length (+/- 0.26 mm min.)Maximum Printable Length: Maximum Printable Roll Length: 708.66"6

Sheet Media Handling:

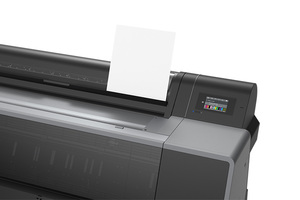

Sheet Loading: Auto-loading if less than 0.5 mm thickThickness: 0.8 mm to 1.5 mmSingle Sheet, Top-loading: Up to 44" wideBorderFree Print Widths: 10", 11.8", 13", 16", 17", 20", 20.3", 23.4", 24", 28.7", 33.1", 36", 40.6", 44"Left/Right Margins: 3 mm each side; 6 mm or 0.24" total; or 0" at BorderFree sizesTop/Bottom Margins:
  • Top/Bottom Margins: 3 mm/15 mm
  • Top/Bottom Margins with Centering On: 15 mm/15 mm

Roll Media Handling:


Single Roll-to-Roll / Top-loading Roll: 44" wideMedia Core: 2" or 3" Core Diameter; User-adjustable roll media adaptersTake-up Reel: (optional) Auto forward and backward; light-based media sensorRoll Cutting: High-speed internal rotary cutter; auto or manual5Minimum Auto Cut Length: 5.0" plus top and bottom margin (5.24" min.)Top/Bottom Margins: Normal: 20mm/15mm (Premium Luster Photo Paper); option: Top 3mm, 15mm, 20mm, 45mm/Bottom 3mm, 15mmLeft/Right Margins: mm each side; 0.24" total; or 0" at BorderFree® sizesRoll Paper Remaining: Printable barcode tracking systemBorderFree Print Widths: 10", 11.8", 13", 16", 17", 20", 20.3", 23.4", 24", 28.7", 33.1", 36", 40.6", 44"

Printer Details:


Printer Language: Epson ESC/P® raster photographic drivers standardInterfaces: Hi-Speed USB 2.0 (1 port)
1000Base-T Ethernet (1 port)

Power:


Rated Voltage: AC 110 - 240 VRated Frequency: 50 - 60 HzRated Current: 2 APower Consumption: Printing: approx. 110 W
Ready: approx. 32 W
Sleep Mode: approx. 3.4 W (1000Base-T Ethernet in Standby)
Power Off: less than 0.3

Notes:

* This printer is designed for use with Epson genuine cartridges and ink only, not third-party cartridges or ink. For more information, see epson.com/wideformatink

1 Print speeds are based on the print engine speed only. Total throughput time for any print depends on various factors including workstation configuration, file size, print resolution, ink coverage and networking. Actual print speeds will vary.

2 99% coverage of PANTONE PLUS FORMULA GUIDE solid-coated palette based on Epson Proofing Paper White Semimatte printed with the Epson Driver at 2400 x 1200 dpi. PANTONE coverage may vary when printed under other conditions.

3 Ink lightfastness rating based on accelerated testing of prints on specialty media, displayed indoors, under glass. Actual print stability will vary according to media, printed image, display conditions, light intensity, humidity and atmospheric conditions. Epson does not guarantee longevity of prints. For maximum print life, display all prints under glass or lamination or properly store them. Visit www.wilhelm-research.com for the latest information.

4 Cartridge yields vary considerably based on images printed, print settings, paper type, frequency of use and temperature. For print quality, a variable amount of ink remains in the cartridge after the "replace cartridge" indicator comes on. The printer ships with full cartridges and part of the ink from the first cartridges is used for priming the printer.

5 High-volume cutting of canvas and heavy media stocks may require frequent cutter replacement.

6 Allowed by printer driver for Mac® and PC. Application, version of application and operating system version may limit maximum length.

7 For the latest drivers, visit epson.com/support

8 For convenient and reasonable recycling options, visit epson.com/recycle

9 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
