For Work Projectors Classroom BrightLink 685Wi Interactive Display

BrightLink 685Wi+ WXGA 3LCD Ultra Short-throw Interactive Display

Zoom In

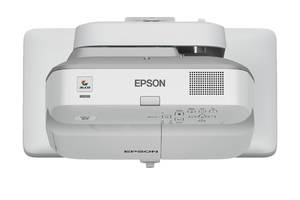

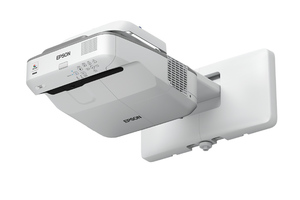

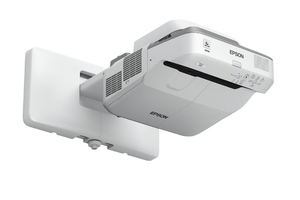

BrightLink 685Wi+ WXGA 3LCD Ultra Short-throw Interactive Display
BrightLink 685Wi+ WXGA 3LCD Ultra Short-throw Interactive Display
BrightLink 685Wi+ WXGA 3LCD Ultra Short-throw Interactive Display
BrightLink 685Wi+ WXGA 3LCD Ultra Short-throw Interactive Display
BrightLink 685Wi+ WXGA 3LCD Ultra Short-throw Interactive Display
BrightLink 685Wi+ WXGA 3LCD Ultra Short-throw Interactive Display

Pen-based WXGA ultra short-throw interactive display for classrooms.

Transform your classroom into a collaborative learning space with the BrightLink 685Wi ultra short-throw WXGA interactive display. Featuring 3,500 lumens of color and white brightness1, the 685Wi delivers a dynamic, easy-to-read display up to 100" — from as close as 11" away. Take interactive learning to new heights with dual pen-based interactivity that lets up to two users draw and write on almost any wall or existing whiteboard. Wirelessly display content from a variety of devices — including Chromebooks — using the Epson iProjection™2 App with Moderator device management software3. Plus, it includes a 1-year subscription and support for SMART Learning Suite.


More Info?

  • Model: V11H741021
Find Accessories Support
Bright and Colorful
Features 3500 lumens of color brightness (color light output)1 and 3500 lumens of white brightness (white light output)1.
WXGA Resolution
1280 x 800 HD widescreen resolution
Two Interactive Pens - Simultaneous
Annotate and interact with projected images using two interactive pens. Users can write simultaneously or independently.
PC-Free Annotation
Annotate without a computer, using only the built-in, PC-free tools.
Ultra-Short Throw Projector
Can be mounted only 9" away from the board for a projected image as large as 87" diagonal – with no shadow interference.
HDMI / MHL Connectivity
Stream 1080p content and mirror your mobile device with MHL & the latest in connectivity. Get instant access to movies, games and more from MHL-enabled devices.
  • Bright display — 3,500 lumens color/white brightness1
  • Pen-based interactivity — turn almost any wall or existing whiteboard interactive; allows up to two users to write and draw at once, anywhere on the image area
  • Wirelessly connect up to 50 devices — simultaneously share and control content from up to four screens at once using Moderator software3, including Chromebook, PC, Mac, iOS® and Android™ devices
  • Easy content sharing — share images between the big screen and wirelessly connected mobile devices, for individualized learning2
  • Includes 1-year subscription and support for SMART Learning Suite — SMART Notebook®, SMART amp™, SMART lab™, SMART Learning Suite Online and more
  • Ultra short-throw interactive display — get a large, easy-to-read 100" image from as little as 11" away with virtually no shadow interference
  • Long-life, low-cost lamps — lasts up to 10,000 hours in ECO Mode4
  • DuoLink — install two BrightLink displays side-by-side to create one seamless interactive surface5
  • High Color Brightness6, and reliable performance — 3LCD, 3-chip technology



IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • BrightLink 685Wi+ ultra short-throw interactive projector
  • Quick Start Guide
  • 15' power cable
  • 5m USB A/B cable
  • 5m USB extender cable
  • electronic user manual
  • interactive driver for Mac and PC
  • Epson Easy Interactive Tools
  • Network Management software
  • projector remote control
  • two (2) interactive pens
  • pen tray
  • two (2) AA batteries (for interactive pens) plus battery charger
  • two (2) AA batteries (for remote)
  • SMART Learning Suite redemption code
  • Soft pen tips (4)
  • Hard pen tips (2)

Specifications Projector:

Projection System: Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/wall mount/table mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 1,024,000 dots (1280 x 800) x 3Color Brightness - Color Light Output: 3,500 lumensWhite Brightness - White Light Output: 3,500 lumensAspect Ratio: 16:10Resolution: 1280 x 800 (WXGA)Lamp Type: 250 W UHELamp Life: ECO Mode: Up to10,000 hours, Normal Mode: Up to 5,000 hoursThrow Ratio Range: (16:10) 0.28 – 0.37, (4:3) 0.33 – 0.45, (16:9) 0.28 – 0.37Size - projected distance: (4:3) 53" – 88"; (16:10) 60" – 100"; (16:9) 59" – 97"Keystone Correction: Horizontal: ±3 degrees; Vertical: ±3 degreesUSB Plug 'n Play: For Mac: Mac OS® 10.7/10.8/10.9/10.10/10.11/macOS™ 10.12.x
For Windows: Windows Vista®/Windows 7/Windows 8/Windows 10Contrast Ratio: Up to 14,000:1Color Reproduction: Up to 1 billion colorsInteractive Color Brightness - Color Light Output: 3,500 lumensInteractive White Brightness - White Light Output: 3,500 lumens

General:

Operating Temperature: 41 ˚ to 104 ˚F (5 ˚ to 40 ˚C)Dimensions: 14.5" x 15.8" x 5.9" (W x D x H)Weight: 12.8 lbSecurity: Kensington lock provision, security anchor bar, Password Protection function

Projection Lens:

Type: Manual focusF-number: 1.6Focal Length: 3.7 mmZoom Ratio: Digital zoom: 1.0 – 1.35x

Interactive Specifications:

Interactive Connectivity: USB cable for non-networkedInteractive Technology: Infrared, 850 nmCalibration Method: Automatic or ManualInteractive Modes: Computer Interactivity/Input, PC-free with Whiteboard Annotation, Pen: Dual UserInteractive Area: 60" – 100" diagonal (16:10, WXGA)System Compatibility: Microsoft® Windows Vista, Windows Vista SP1, Windows Vista SP2 (All editions except for Starter), Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter) Mac OS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.xPC-Free Annotation: Dual userPC-Free Annotation Tools: Document Cameras, DVD/ Blu-ray Disc® player, iPod®/iPad® devices, ChromebooksPC-Free Annotation Sources: USB, HDMI, Computer 1, Computer 2, LAN

Interactive Input Device:

Type of Interactive Input Device: Digital penInteractive Pen Functions: Mouse Functions (left and right click), Electronic Pen, LED Battery Status IndicatorInteractive Pen Power: AA battery, rechargeableInteractive Pen Weight: 1.1 oz (without battery)Interactive Pen Dimensions: 6.3" x 0.94" (diameter)Compatible Pen Battery Types: neloop® batteries (included), Manganese dry cell, alkaline dry cell

Projector Details:

Display Performance: NTSC: 480 linesInput Signal: NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAMSpeaker: 16 W monauralFan Noise: ECO Mode: 29 dB, Normal Mode: 35 dB

Remote Control:

Features: Computer, Video/HDMI, USB, LAN, Source Search, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Help, Auto, Enter, ESC, Pointer, Home, Split, Pen Mode, Link MenuOperating Distance: Rear: Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degrees
Front: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degreesOperating Angle: 19.7 ft (6 m)

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 HzPower Consumption: 373 W
2.2 W Standby (Communication On)

General Projectors:

Interfaces:
  • 2x HDMI®
  • 1x HDMI/MHL®
  • Computer/Component video: 1x D-sub 15 pin
  • Composite video: 1x RCA (Yellow)
  • Audio in: 3x Mini stereo
  • USB connector: 1x Type B (USB display, audio interactivity and mouse control)
  • USB connector: 1x Type A (USB memory/document camera)
  • 1x RJ-45
  • Serial: 1x RS-232c
  • Monitor Out/Computer 2: 1x D-sub 15 pin
  • Audio Out: 1x Mini stereo
  • Microphone: 1x Mini stereo
  • Wireless LAN port: 802.11 b/g/n (optional – module sold separately)
  • Interactive Synchronization Mini stereo In
  • Interactive Synchronization Mini stereo Out
See Full Specs Hide Full Specs
Print All Specs

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color Brightness (Color Light Output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color Brightness will vary depending on usage conditions.
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.
3 Moderator feature is part of EasyMP® Multi-PC Projection software.
4 ECO Mode is up to 10,000 hours. Normal Mode is up to 5,000 hours. Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
5 Requires Easy Interactive Driver. Certain functionality is only available through Epson Interactive Tools (EIT) software. For a list of supported operating systems, visit www.epson.com
6 Color brightness (color light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.
7 For convenient and reasonable recycling options, visit www.epson.com.jm/environment
