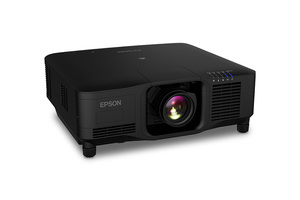

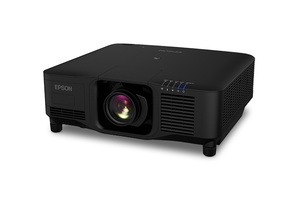

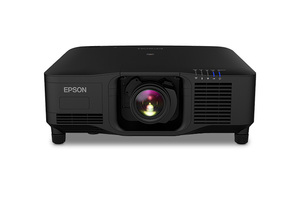

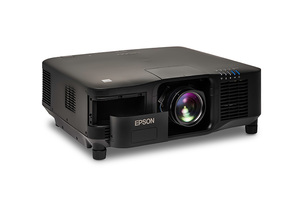

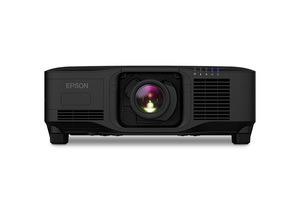

EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement

Zoom In
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement
EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement

The world’s smallest and lightest 20,000-lumen projector1.

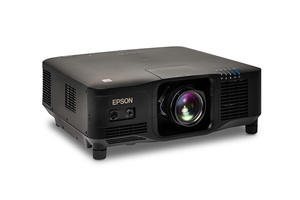

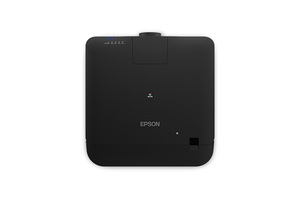

Experience the power and flexibility of the EB-PU2220B 20,000-lumen2 large venue laser projector, the world's smallest and lightest 20,000-lumen projector1. Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.

The EB-PU2220B produces ultra bright, 20,000-lumen images2 and uses a 20,000-hour virtually maintenance-free laser light source3. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality4, and the optional attachable PixAlignTM camera to streamline multi-projector setups.

NOTE: Camera, lens, frame, and mount accessories sold separately.


More Info?

      • World's smallest and lightest 20,000-lumen projector1
      • 20,000 lumens of equal white and color brightness2
      • WUXGA with 4K Enhancement5
      • 20,000-hour virtually maintenance-free laser light source3



      Throw Distance Calculator

  • Model: V11HA66820
Where to Buy
Find Accessories Support
Incredible Color
Epson 3-chip 3LCD technology produces 20,000 lumens of equal white and color brightness2
WUXGA with 4K Enhancement5
accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image
Robust, high-reliability design
Virtually maintenance-free 20,000-hour laser light source4; filterless cabinet; optimized liquid cooling system; IP5X-rated hermetically sealed optical and light source module for high dust resistance
Simplified installation

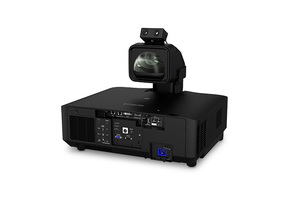

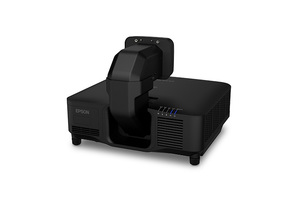

9 optional powered lenses (sold separately), including an ultra short throw .35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation
Installation flexibility
Provides full brightness from 220 V power and up to 19,000 lumens2 from a standard 120 V power source
Ideal for live event applications

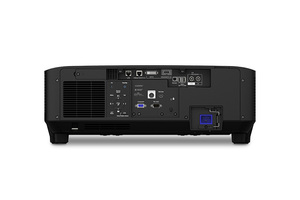

3G-SDI input and output easily accommodate daisy-chaining and long cable runs; mechanical shutter helps protect projector during laser light shows
  • Ideal for live event applications — 3G-SDI input and output easily accommodate daisy-chaining and long cable runs; mechanical shutter helps protect projector during laser light shows
  • Outstanding image quality — high native contrast ratio produces deep blacks; frame interpolation delivers realistic, moving images; HDR support6 and scene adaptive gamma correction for true-to-life images
  • Fast installation — built-in NFC functionality4 and easy-to-use Android® and iOS® mobile app, Epson Projector Configuration Tool (EPCT)7, to streamline multi-projector installations

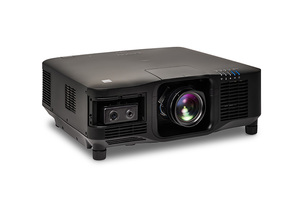

  • Optional attachable PixAlignTM camera — provides access to powerful features, including projector stacking assist function8, tiling assist8 for edge blends, color calibration8 and screen matching9

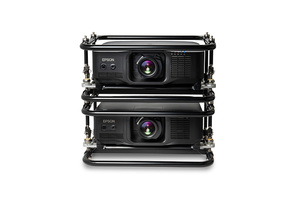

  • Simple Stacking function — quickly stack two projectors using a remote controller instead of conventional setup with a PC and router; requires optional attachable camera9
  • Efficient setup — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT10); easily manage your installed inventory using Epson Projector Management11

Eco Features

  • RoHS compliant
  • Recyclable product12

Better Products for a Better Future™

For more information on Epson's environmental programs, go to epson.com.jm/environmental-pursuit

What's in the box:

  • EB-PU2220B projector
  • Power cable
  • Remote control with two batteries
  • Cable cover
  • User guide
  • Warranty sheet

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

1 Comparison based on projectors rated at 20,000 lumens. Lumens, size and weight based on the manufacturers' online specifications and industry-available data as of December, 2021.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period
4 NFC requires use of a device that includes NFC, and may require additional software.
5 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.
6 HDR performance available with select third-party devices. For more information, see www.epson.com/hdrcompatibility.
7 Internet connection required for download. Data usage fee may apply.
8 Requires Epson external camera or built-in camera for each projector and the Epson Projector Professional Tool app.
9 Using separate camera for each projector.
10 Mac® and PC only.
11 Windows® only.
12 For convenient and reasonable recycling options, visit www.epson.com/recycle.
