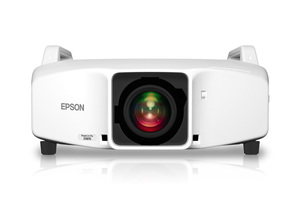

PowerLite Pro Z9870NL XGA 3LCD Projector without Lens

The bright, flexible installation projector for large venues

The PowerLite Pro Z9870NL projector combines bright projection and XGA resolution — perfect for installation in auditoriums, lecture halls and other large venues. Offering high Color Brightness*, Epson projectors ensure vivid images. With 8,700 lumens of color brightness and 8,700 lumens of white brightness¹, the Z9870NL makes content shine, even in ambient light. Featuring 3LCD, 3-chip technology and and an array of connectivity options — including HDBaseT^TM — this powerful performer delivers uncompromised image quality and professional-grade reliability. And, installation has never been more flexible, with seven optional lenses, lens shift, Curved Edge Blending, Portrait Mode and 360-degree projection features.

Model: V11H607920

Find Accessories Support

Overview

High Color Brightness and reliable performance — 3LCD, 3-chip technology*
One measurement of brightness is not enough — look for both high color brightness and high white brightness.
The PowerLite Pro Z9870NL has:
Brilliant images — XGA (1024 x 768) resolution for presentations, videos, digital signage and more
Seven optional lenses with lens shift — including short-, wide-, rear- and long-throw lenses designed with a change-out lever for easy installation (lens not included)
Flexible installation for immersive experiences in any setting — built-in Curved Edge Blending, Portrait Mode projection, and 360-degree installation
Get twice the brightness and power — optional stackable frame makes it easy to install two projectors for unbelievable brightness, plus 3D support
Versatile connectivity — supports the latest connectivity options, including HDBaseT, HDMI^TM and DVI
Dual-lamp design with lamp select/relay function — get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
Split Screen feature — project two images (video or still) side-by-side from two different sources simultaneously²
Convenient monitor and control features — easily manage the projector, either directly or remotely; compatible with AMX®, Crestron® and Extron®

What's in the box:

PowerLite Pro Z9870NL projector
Power cable
Computer cable
Projector remote control
Batteries
Cable cover
User manual CD
Quick Setup Sheet
PrivateLine support card
Password protection sticker
Monitor and Control CD
Lens not included

Specifications

Specifications Projector:

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 786,432 pixels x 3LCDsColor Brightness - Color Light Output: 8,700 lumens¹White Brightness - White Light Output: 8,700 lumens¹Aspect Ratio: Native 4:3 (supports 16:10, 16:9, 5:4)Resolution: XGA (1024 x 768)Lamp Type:

Normal:

ECO mode: Up to 4000 hours²
Normal mode: Up to 2000 hours²

Portrait:

Normal mode: Up to 1000 hours²

Lamp Life:

Normal: 380 W x 2 UHE
Portrait: 304 W x 2 UHE

Brightness Uniformity: 0.9Pixel Arrangement: Cross stripeThrow Ratio Range: 1.74 – 2.82 (standard lens)Size - projected distance: 60" – 500"Keystone Correction:

Vertical: -30 degrees to +30 degrees
Horizontal: -30 degrees to +30 degrees

Contrast Ratio: Normal, Dynamic Mode: Up to 15,000:1Color Processing: 10 bitColor Reproduction: Up to 1.07 billion colors

General:

Temperature:

Normal: 32° to 122° F (0° to 50° C)
Above 4900 feet: 32° to 104° F (0° to 40° C)

Security: Kensington®- style lock provision, anchor (metal) bar for security lock or cable, handles attached to body for cable wrap

Projection Lens:

Type: Powered zoom / focusF-number: 1.65 – 2.51 (standard lens), lens not includedFocal Length: 36 mm – 57.35 mm (standard lens)Zoom Ratio: Optical zoom 1.0 – 1.61 (standard lens)Lens Shift:

Powered

Vertical: ±56%
Horizontal: ±19%

Video:

Video Processing:

Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
HDMI: 480i / 576i / 480p / 576p / 720p /1080i / 1080p
DVI-D: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p

Video Standards:

3D Y/C separation, 3D noise reduction, mosquito noise reduction
DCDi — Directional Correlational DeinterlacingMotion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection)

Super Resolution:

FineFrame Interpolation
8:8 Pull-down Processing
Closed Captioning

Connectivity Projector:

Standard Connectivity:

Wired: Integrated 100Mbps
Wireless: Optional — 802.11b/g/n
Wireless Security: WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES)

Remote Control and Management:

Epson EasyMP® Monitor
Network projection
Multi-projection
AMX® Device Discovery
Crestron® Integrated Partner and Crestron RoomView®
Extron® IP Link and XTP
PJLink

Projector Details:

Interfaces:

HDMI x 1
DVI-D x 1
HDBase-T x 1
Computer: D-sub 15 pin x 2
Video: BNC x 5
Composite Video: BNC x 1
Wired Network: RJ-45 x 1
Wireless Network: Optional
Serial: Rs-232c x 1
Hardwired Remote Jack x 1
Monitor-Out: D-sub 15 pin x 1
USB Type-A: For wireless only
USB Type-B: For service only

Speaker: NoneFan Noise:

ECO mode: 35 dB
Normal mode: 37 dB

Audio Output: None

Projector Dimensions:

Weight - with standard lens: 58 lbExcluding feet - with standard lens: 21.02" x 29.17" x 10.04" (W x D x H)Including feet - with standard lens: 21.02" x 29.17" x 7.76" (W x D x H)

Remote Control:

Features: Brightness, contrast, tint, saturation, sharpness, input signal, sync, tracking, position, zoom, focus, lens shift, shutter, ID, source search, split screenOperating Distance: 98 ftOperating Angle:

Front

Right / Left: ±60 degrees
Upper / Lower: -45 to +15 degrees

Rear

Right / Left: ±60 degrees
Upper / Lower: -40 to +15 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:

ECO mode: 748 W
Normal mode: 844 W
Communication on: 2.7 W standby
Communication off: 0.26 W standby

See Full Specs Hide Full Specs

Print All Specs

Accessories

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color Brightness (Color Light Output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color Brightness will vary depending on usage conditions.

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Consult your user manual for input combinations.

Specifications Notes:
¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
