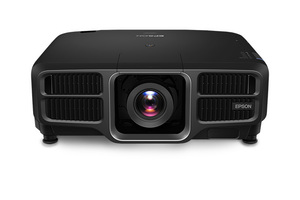

Pro L1715SNL SXGA+ 3LCD Laser Projector Without Lens

Premium large-venue SXGA+ laser projector with 15,000 lumens¹

The Pro L1715SNL combines a laser light source, inorganic components and 3LCD technology for powerful, uncompromising images. This premium large-venue projector also features native SXGA+ performance. Delivering 15,000 lumens of color/white brightness¹ from a standard 120 V power source, the Pro L1715SNL offers ultra bright, vivid color, while its laser light source engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours². This sleek, black projector includes Edge Blending and curved-surface correction for a variety of installation applications. Its integration capabilities include HDBaseT™ connectivity and nine optional powered lenses (sold separately).

Some lenses will not support the maximum brightness level of this projector. VIEW THE PDF ►

More Info?

Model: V11H890820

Find Accessories Support

REPLACEMENT PRODUCT :

EB-PU2216B 16,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement

Model: View Main Product Page Learn More

Overview

Bright, vivid color — 15,000 lumens color/white brightness¹
Native SXGA+ (1400 x 1050) resolution — for presentations, videos, digital signage and more
Solid-state laser light source — virtually maintenance-free 20,000-hour laser light source with no lamps²
Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
Powerful — remarkable brightness from a compact projector with a 120 V power source
Advanced connectivity — HDBaseT, HDMI^®, DVI-D, VGA, 5-BNC and Stereo Mini
Nine optional interchangeable lenses (sold separately) — with powered lens shift and lens memory
Installation flexibility — 360-degree projection and Portrait Mode for added versatility
Remote management and control tools — included software allows for web-based monitoring and control of Epson networked projectors
Image correction camera — automatically adjusts color and brightness to match other projectors in multiple-screen applications

Eco Features

RoHS compliant
Recyclable product³
Epson America, Inc. is a SmartWay^SM Transport Partner⁴

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

What's in the box:

Pro L1715SNL projector
Power cable
Projector remote control with batteries
Cable cover
HDMI clamp

Specifications

Specifications Projector:

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 1,470,000 dots (1400 x 1050) x 3Color Brightness - Color Light Output: 15000 lumens¹White Brightness - White Light Output: 15000 lumens¹Aspect Ratio: 0.16875Resolution: 1400 x 1050 (SXGA+)Resize: 1280 x 1024, 1400 x 1050Brightness Uniformity: (typical) 90%Pixel Arrangement: Cross stripeThrow Ratio Range: (For Standard Lens Only) 1.57 — 2.56Size - projected distance: 60" – 500"Contrast Ratio: 2,500,000:1Color Reproduction: Up to 1.07 billion colorsLight Source Life:

Normal: 20,000 hours²
Extended: 30,000 hours²

Effective Scanning Frequency Range:

Pixel Clock: 13.5 MHz – 162 MHz (up to UXGA 60 Hz)Horizontal: 15 kHz – 92 kHzVertical: 50 Hz – 85 Hz

General:

Temperature: 32° to 113° F (0° to 45° C)Operating Temperature: 32 ˚ to 113 ˚F (0 ˚ to 45 ˚ C)Weight: 53.2 lb (with standard lens, not included)Security:

Security cable hole
Lens lock
Kensington® lock provision,

Projection Lens:

Type: (For Standard Lens, Not Included) Powered shift/focus / zoomF-number: (For Standard Lens, Not Included) 1.8 – 2.35Focal Length: (For Standard Lens, Not Included) 36.0 – 57.35 mmZoom Ratio: (For Standard Lens, Not Included) Optical zoom 1 – 1.61Lens Shift: Vertical: ±60%; horizontal: ±18%

Projector Details:

Input Signal: NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/ SECAM/480i/576i/480p/576p/720p/1080i/1080pInterfaces:

DVI-D x 1
HDMI x 1
HDBaseT x 1
5-BNC
VGA x 1
Audio in: Mini Stereo x 3
Variable audio out: Mini Stereo x 1
USB connector Type B x 1: For service only
USB connector Type A x 1: For wireless only
Monitor out: Mini D-sub 15 pin x 1
Serial: RS-232c x 1

Fan Noise:

Normal mode: 40 dB
Quiet mode: max. 30 dB

Projector Dimensions:

Including feet - with standard lens: 23.1" x 19.4" x 8.3" (W x D x H)

Remote Control:

Features: Power, search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, Color Mode, help, menu, enter, esc and standbyOperating Distance: 49 ftOperating Angle:

Right/left: Front: ± 60 degrees, Rear: ± 30 degrees
Upper/lower: Front: ± 20 degrees, Rear: +10 to +50 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:

Normal mode: 1082 W
ECO mode: 668 W
Communication on: 2.0W standby
Communication off: 0.3 W standby

See Full Specs Hide Full Specs

Print All Specs

Accessories

HDBaseT Transmitter for Large Venue Projectors (ELPHD01)

Cables

Lenses

ELPMB67 Adjustable Ceiling Mount for Pro Series Projectors

Mounts

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118. Some lenses will not support the maximum brightness level of this projector.

² No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of 3 years or 20,000 hours, whichever comes first.

³ For convenient and reasonable recycling options, visit www.epson.com/recycle

⁴ SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
