Home For Work Projectors Meeting Room PowerLite 4770W WXGA 3LCD Projector

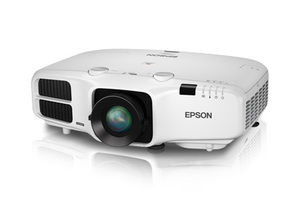

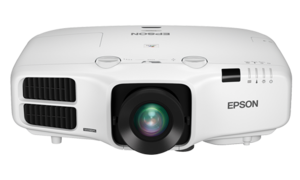

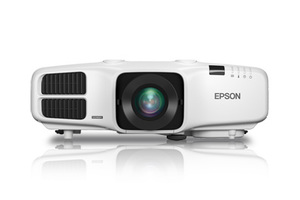

PowerLite 4770W WXGA 3LCD Projector

The PowerLite 4770W projector provides brilliant color and amazing image quality. Offering Up to 3x Brighter Colors* than competitive models, Epson 3LCD projectors ensure sharp, vivid images. With 5000 lumens of color brightness and 5000 lumens of white brightness1, plus WXGA resolution, the PowerLite 4770W delivers an extraordinary multimedia experience. This powerful product also features flexible installation with horizontal and vertical lens shift, point and arc correction, and more. Advanced digital connectivity, including HDMI® and DisplayPort™, makes it easy to display content from nearly any device. And, with cutting-edge video processing, whatever you display is sure to captivate.



Up to 3x Brighter Colors with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have up to 3x Brighter Colors than leading competitive projectors*. Delivering 5000 lumens of color brightness1 and 5000 lumens of white brightness1, the PowerLite 4770W uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

    • Projection System: Epson 3-chip 3LCD technology
      Native Resolution: 1280 x 800 (WXGA)
      Color Brightness: 5000 lumens1
      White Brightness: 5000 lumens1
      Throw Distance Calculator
  • Model: V11H748020
  • Up to 3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The PowerLite 4770W has:
      Color Brightness: 5000 lumens1
      White Brightness: 5000 lumens1
  • Crisp widescreen resolution — WXGA (1280 x 800) for sharp, brilliant detail
  • Easily align images — up to 70 percent vertical lens shift and up to 38 percent horizontal lens shift
  • Advanced installation features — including point and arc correction to easily adjust each side of an image for a perfectly rectangular image
  • Versatile connectivity — HDMI and DisplayPort inputs; wirelessly display and control content from smartphones and tablets (Android™ and iOS® devices) with the Epson iProjection™ App2
  • Remarkable video processing — Faroudja DCDi Cinema® technology helps you achieve exceptional video quality without introducing artifacts
  • Network management and control tools — remote presentations; built-in schedule function
  • Split Screen — project two images (video or still) side by side from two different sources, simultaneously3
  • Centered lens design — position the ceiling mount, screen and projector independently; screen will align with the lens at the center of the projector

Eco Features

  • Energy-efficient 3LCD light engine
  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWaySM Transport Partner5

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT INFORMATION ABOUT USAGE ENVIRONMENTS ►

What's in the box:

  • PowerLite 4770W Projector
  • Power cable
  • Computer cable (VGA)
  • Projector remote control with batteries
  • User manual CD
  • EasyMP® software CD
  • Quick Setup Sheet
  • Registration card
  • Password protection sticker
  • Lens lock screw

Specifications Projector:


Projection System: High-aperture Epson 3-chip 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 1,024,000 pixel (1280 x 800) x 3Color Brightness - Color Light Output: 5000 lumens1White Brightness - White Light Output: 5000 lumens1Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1280 x 800 (WXGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 280 UHELamp Life:
  • Normal mode: Up to 4000 hours2
  • ECO mode: Up to 5000 hours2
Brightness Uniformity: 90%Pixel Arrangement: Cross stripeThrow Ratio Range: 1.27 – 2.59Size - projected distance: 30" – 300"Keystone Correction:
  • Horizontal: ±30 degrees
  • Vertical: ±30 degrees
Contrast Ratio: High Brightness, Dynamic mode: 5000:1Color Reproduction: Up to 1 billion colors

Effective Scanning Frequency Range:


Pixel Clock, Horizontal,Vertical:
    Pixel Clock
  • 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
  • Horizontal
  • 15 KHz – 92 KHz
  • Vertical
  • 50 Hz – 85 Hz

General:


Temperature: 32° to 113° F (0° to 45° C)Weight: Weight with standard Lens 14.3 lbs.Security:
  • Security Cable Hole
  • Lens lock,
  • Kensington® lock provision

Projection Lens:


Type: Manual focus / ZoomF-number: 1.50 – 2.14Focal Length: 16.72 mm – 33.47 mmZoom Ratio: Optical zoom 1.0x – 2.0Lens Shift:
  • Horizontal: ±38%
  • Vertical: ±70%

Projector Details:


Display Performance:
  • NTSC: 480 line
  • PAL: 576 line
  • (depends on observation of the multi-burst pattern)
Input Signal:
  • NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  • 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
  • Pixel works: video chip
  • 3D Y / C separation, noise reduction motion compensated
  • Interlace-Progressive conversion (2 – 2, 3 – 2 film detection)

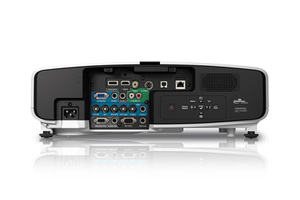

Interfaces:
  • HDMI x 1
  • DisplayPort x 1
  • Computer: D-sub 15 pin x 1
  • Video 1: 5-BNC x 1
  • Video-2: RCA x 1
  • Composite video: BNC x 1
  • S-Video x 1
  • Audio-in: Mini stereo x 3
  • Audio-in: RCA (L&R) x 1
  • Network: RJ-45 x 1, 1,100 Mbps
  • USB Type-A x 1, Type-B x 1
  • Serial: RS-232c x 1
  • Hardwire remote jack x 1
  • Monitor-Out: D-sub 15 pin x 1
Fan Noise:
  • Normal mode: 38 dB
  • ECO mode: 32 dB

Projector Dimensions:


Including feet: 18.58" x 13.94" x 6.26" (W x D x H)Excluding feet and lens: 18.58" x 12.60" x 5.28" (W x D x H)

Remote Control:


Features: Power, source search selection, computer, video, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc andpointer functionsOperating Distance: 49 ftOperating Angle:
    Right / Left:
  • Front: ±60 degrees
  • Rear: ±30 degrees
  • Upper / Lower:
  • Front: ±20 degrees
  • Rear: +10 to +45 degrees

Power:


Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • Normal mode: 409 W
  • ECO mode: 311 W
  • Communication on: 4.3 W standby
  • Communication off: 0.41 W standby

Notes:

* Color Brightness (Color Light Output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color Brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on PMA Research sales data for Dec. 2015 through Nov. 2016.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Check your owner's manual to determine if a separate wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Not all Epson projectors are able to be networked. Availability varies depending on model.

3 Consult your user manual for input combinations.

4 For convenient and reasonable recycling options, visit www.epson.com/recycle

5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
