For Work Printers Large Format SureColor S60600L Printer
New

Epson SureColor S60600L Printer

Zoom In
Epson SureColor S60600L Printer
Epson SureColor S60600L Printer
New

Epson SureColor S60600L Printer

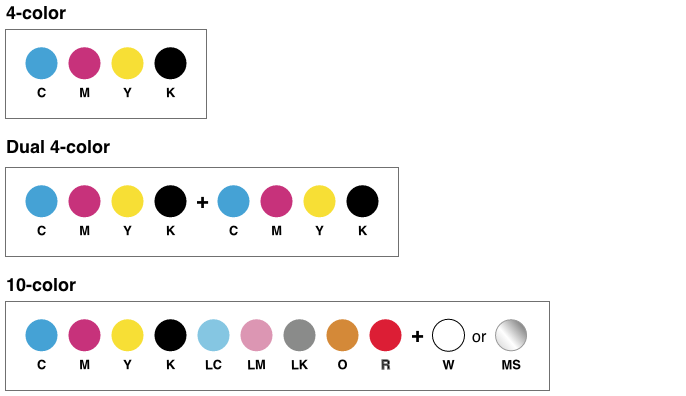

Ink Configuration: C M Y K + C M Y K Ink Guide
Ink System: Bulk Ink Packs
Model: SCS60600L
Where to Buy

Product Highlights

  • Low ink costs
  • Double the ink capacity of previous generations
  • Outstanding quality at true production speeds
  • 4-color solvent ink for amazing quality
  • Durable design for high-production environments

Note: Designed for use exclusively with Epson ink packs*.

Support

Print:

Printing Technology:
  • Dual Advanced PrecisionCore® TFP® Print Heads
  • 8-channel, drop-on-demand, inkjet Print Head
  • Dual 4 Color (C,M,Y,K)
  • Solvent Based Ink Chemistry
Maximum Print Resolution: 1440 x 1440 dpiMaximum Printable Area: 63.6"Print Speed:
  • Draft - 1,020 sqft/hr1
  • Production: Banner - 550 sqft/hr, Vinyl 310 sqft/hr1
  • Quality: Banner - 310 sqft/hr, Vinyl - 190 sqft/hr1
Minimum Ink Droplet Size: 4.2 picoliters; Variable Droplet TechnologyNozzle Configuration: Color and Monochrome 1440 nozzles per Color

Ink:

Ink Type: UltraChrome® GS3Ink Palette: CMYK x 2Replacement Ink:
  • Black T45L120
  • Cyan T45L220
  • Magenta T45L320
  • Yellow T45L420

General:

Operating Systems: Mac OS X 10.8x - 10.11x; Windows 10, 8.1, 7 (64-bit)Server Systems: Windows 7, 8, Windows Vista or Windows XP (64 bit)System Requirements: Intel i7 or better 6GB memory recommendedTemperature:
  • Operating: 50 to 95 degrees F (10 to 35 degrees C)
  • Storage: -4 to 104 degrees F (-20 to 50 C)
Humidity:
  • Operating: 20-80%
  • Operating (Recommended): 40-60%
  • 5-85% (no condensation)
Sound Level: Approximately 59dB according to ISO 7779Dimensions: 103" x 34" x 53" (2616 mm x 609 mm x 1346 mm) W x D x HWeight: 720 lbsWarranty:
  • Standard one-year on-site next business day service with toll-free phone support Monday thru Friday.
  • Optional Epson SureColor S60600L Extended service plans available for purchase for up to three years of total coverage.
  • Participate in the Epson S-Series Rewards program to be eligible for up to five years of total coverage.

Ink Supply System:

Ink Supply Fill Volume: 1500 mL x 4 colorsInk Shelf Life: 2 years from printed production date or 6 months after open

Printable Area and Accuracy:

Maximum Paper Width: 64"Minimum Paper Width: 12"Maximum Printable Width: 63.6"

Roll Media Handling:

Maximum Roll Diameter: Up to 250mmMaximum Roll Weight: Up to 95lbs

Printer Details:

Software Included: Front-End RIP Workflow by Onyx Thrive PANTONE licensed PostScript Language Level 3 Compatible RIP by Onyx. Includes full workflow software with layout, nesting, tiling, custom spot color management, custom media support and RIP queue functionality. The Epson SureColor S60600L is also supported by most leading third-party RIPs and workflows.Controller Specifications: Epson ESC/P® rasterInterfaces:
  • One Hi-Speed USB 2.0 (1.1 Compatible)
  • One Gigabit Ethernet Port

Power:

Rated Voltage: AC 100 - 120 V, AC 200 - 240 VRated Frequency: 50- 60 HzPower Consumption:
  • Operating: Approx. 865W
  • Ready: Approx. 525W
  • Power Off: Approx 1.8
  • Sleep Mode: Approx. 23W
Power Requirements: Two (2) 110v Outlets + One (1) 110v Outlet for additional dryer unit
See Full Specs Hide Full Specs
Print All Specs

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* This product uses only genuine Epson-brand ink packs. Other brands of ink supplies are not compatible and, even if described as compatible, may not function properly. For more information, see www.epson.com/wideformatink

** Epson T45L, 1500 ml, with Silver (500mL) UltraChrome GS3 Ink Pack

1 Print speeds are based on the print engine speed only. Total throughput time for any print depends on various factors including workstation configuration, file size, print resolution, ink coverage and networking. Actual print speeds will vary.

A Ink efficiency based on independent 3rd party testing between HP Latex 570 and SureColor S60600L Test prints produced at equal print pass modes, color profiles, and adhesive vinyl media. Ink usage determined using HP and Epson proprietary ink usage calculation tools and weighing of ink units before and after printing

B Print speeds are based on the print engine speed only. Total throughput time for any print depends on workstation configuration, file size, print resolution, ink coverage, networking, etc. Actual print speeds will vary.

C Percent coverage of PANTONE PLUS FORMULA GUIDE solid-coated palette based on Epson Proofing Paper White Semimatte printed with the Epson Driver at 2880 x 1440 dpi. PANTONE coverage may vary when printed under other conditions.

D Results based on Epson and Avery internal lamination testing at six hours after printing. Your results may vary based on environmental conditions, media type used, ink density, and other factors. For warranty information, please refer directly to the media and laminate manufacturer websites.

E Based on the weight of an empty ink pack vs weight of enough empty cartridges to achieve the equivalent volume of ink.
