Compact, premium large venue 4K projector.

Leveraging our 4K Crystal Motion technology, thermo-control panel and double micro-lens array, the EB-PQ2216B laser projector delivers stunning 4K resolution on-screen. With 16,000 lumens of color and white brightness1, the EB-PQ2216B produces captivating visuals in extraordinary detail. And a high native contrast ratio and 3-chip 3LCD technology means you will enjoy a realistic display enriched with vibrant colors and deep blacks.

Designed for fixed installation applications and to meet the rigorous demands of live events, the EB-PQ2216B features a filterless cabinet, IP5X-rated hermetically sealed optical and light source unit, and a virtually maintenance-free 20,000-hour laser light source2. The projector provides frame interpolation for fast-moving objects, as well as HDR support3 and scene adaptive gamma correction for lifelike images. The EB-PQ2216B pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality4, and an optional attachable PixAlign™camera to streamline multi-projector setups.

Where to Buy
Find Accessories Support
Incredible color
Epson® 3-chip 3LCD technology produces 16,000 lumens of equal white and color brightness1
4K resolution on-screen
leverages Epson’s 4K Crystal Motion technology, thermo-controlled panel and double micro-lens array for crystal clear image quality that fully realizes 4K resolution (3840 x 2160)
Robust, high-reliability design
virtually maintenance-free 20,000-hour laser light source2; IP5X-rated hermetically sealed optical and light source module for high dust resistance; filterless cabinet; optimized liquid cooling system
Stunning image quality
high native contrast ratio for deep blacks; 50 percent improvement over the already high contrast ratio found with the current Epson EB-PU Series; frame interpolation for fast moving objects; HDR support3 and scene adaptive gamma correction 
Simplified installation

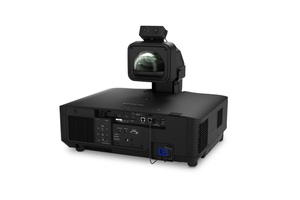

9 optional powered lenses (sold separately) including ultra short throw .35 throw lens with a unique zero offset design for installation flexibility; projector compatible with existing Epson lens family
Enhanced connectivity

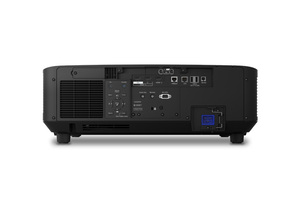

HDMI® two in and one out; 12G-SDI in/out for daisy chaining and signal monitoring; features automatic input switching when input signal is disrupted
  • Low latency performance and high frame rate support — high-speed graphics chip and panel drive technology enable high frame rate 4K playback

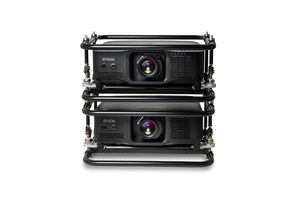

  • Optional attachable PixAlign external camera — access powerful automated tools including edge blending assist5, stacking assist function5, auto color calibration6 and screen matching6 with or without a connected PC and router
  • Versatile power source options — requires 220 V power for full brightness; can operate at 15,500 lumens from a standard 120 V power source for setup and installation
  • Efficient setup and management — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT app)7; easily manage your installed inventory using Epson Projector Management – Connected (EPM-C)8 from any device with a Web browser
  • NFC function built-in4 — reduce installation time of multiple projectors; read and write setting information using Epson’s mobile app
  • Mechanical shutter — protects projector from damage during laser light shows

Eco Features

  • RoHS

What's in the box:

  • EB-PQ2216B projector
  • two cables (200 V – 240 V power cable x 1 and 100 V – 120 V power cable x 1)
  • remote control with 2 batteries
  • cable cover
  • quick reference guide
  • warranty sheet

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
3 HDR performance available with select third-party devices. For more information, see www.epson.com/hdrcompatibility
4 NFC requires use of a device that includes NFC and may require additional software.
5 Requires Epson external camera for each projector and may require Epson Projector Professional Tool app.
6 Using separate camera for each projector.
7 Mac® and PC only.
8 Requires one on-site PC with Epson Projector Connected Agent installed.
